Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

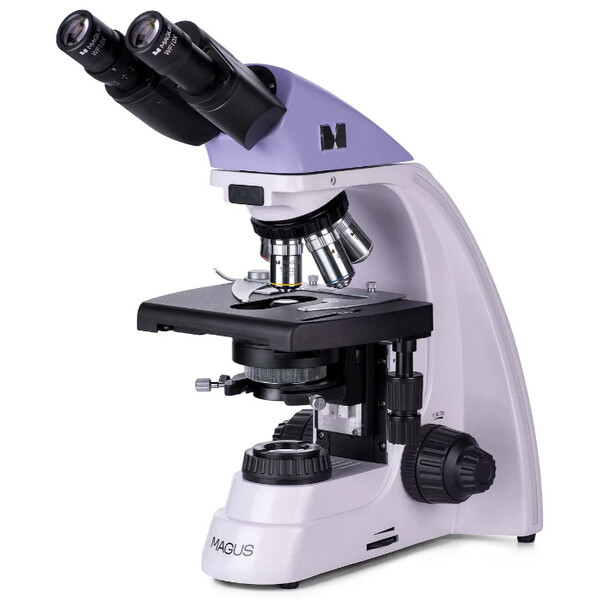

The microscope is suitable for observing transparent and translucent biological samples, such as smears and cross sections in transmitted light in a bright field. The installation of additional accessories will allow for darkfield, phase-contrast, and polarization methods. The microscope is suitable for daily laboratory work, research, and teaching.

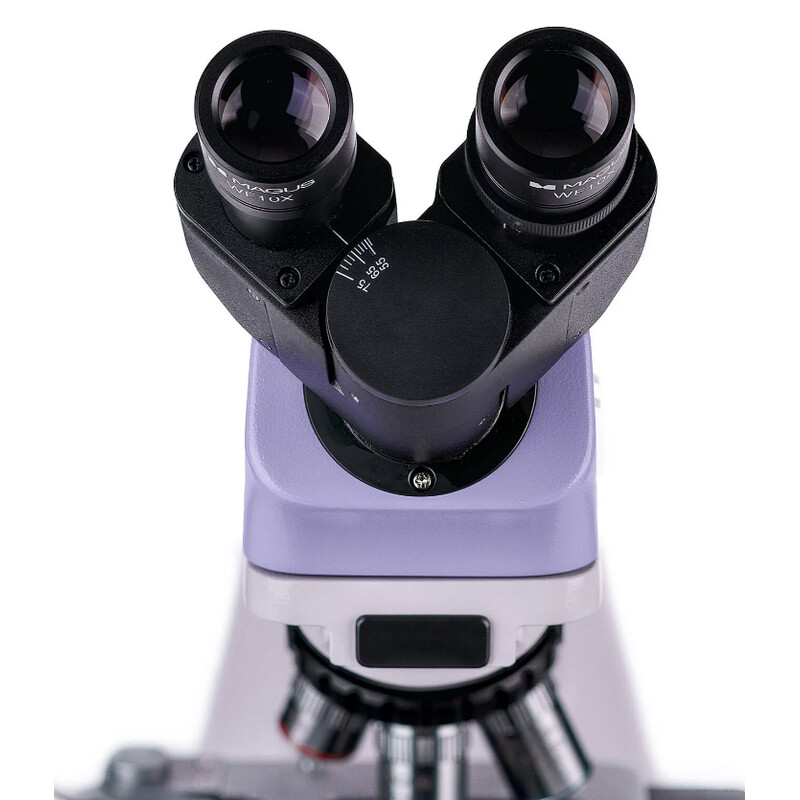

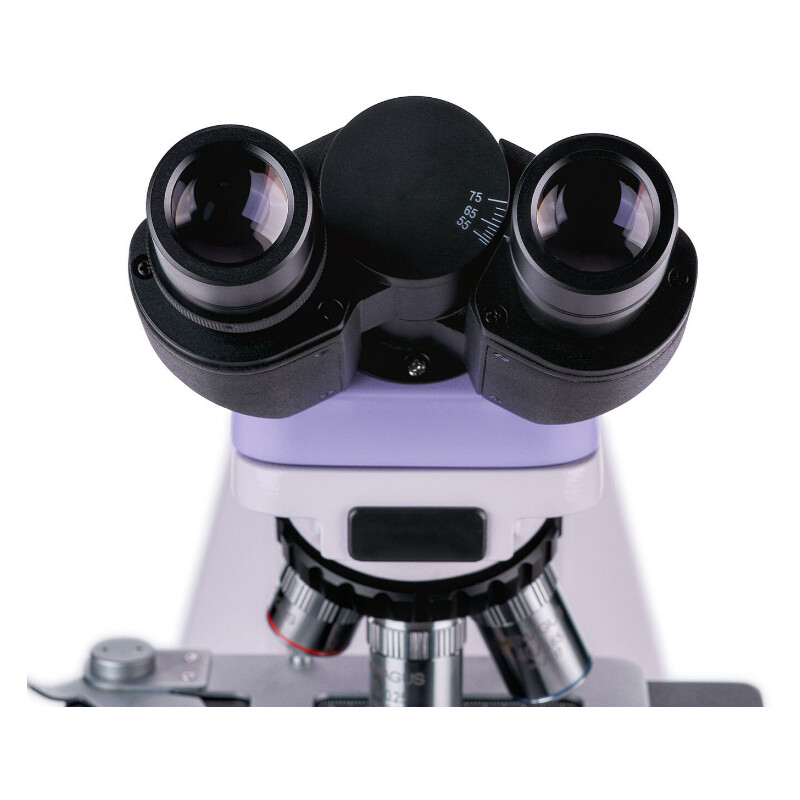

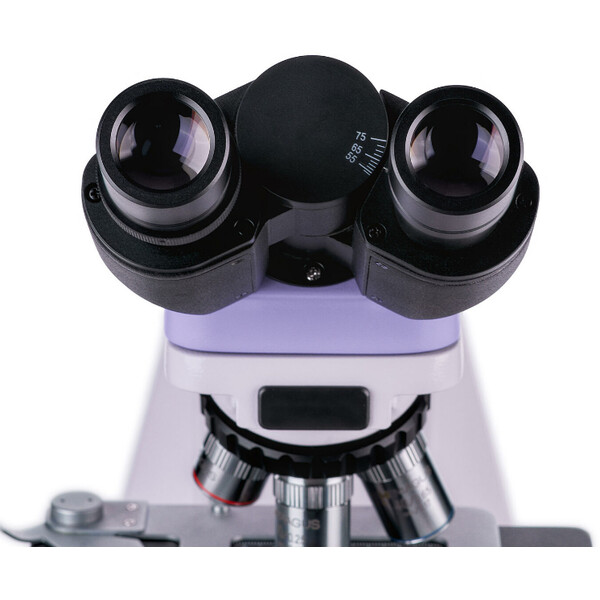

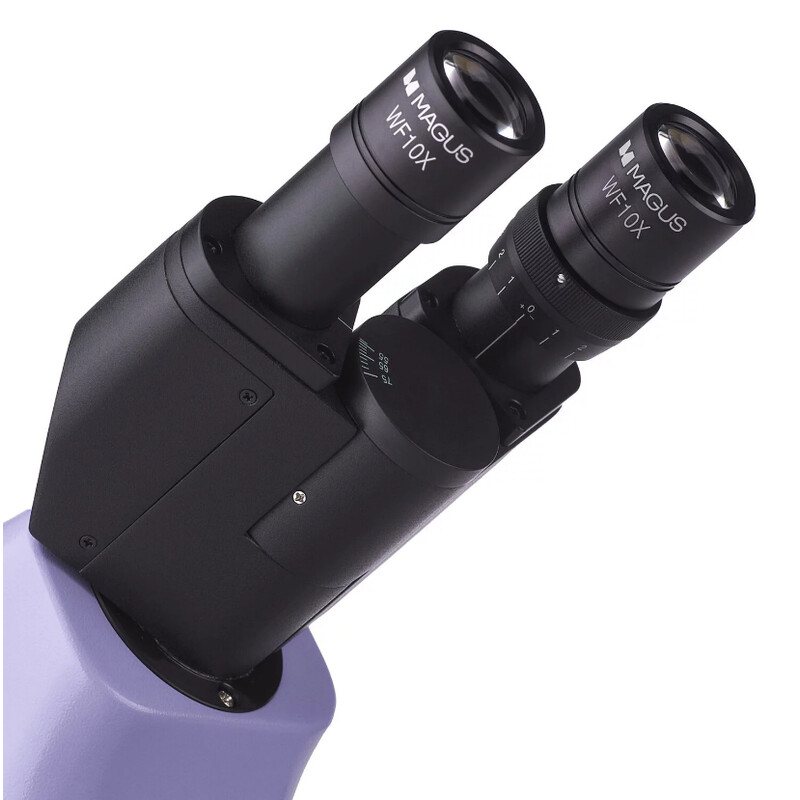

Microscope head

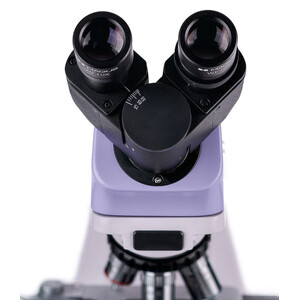

Binocular head with infinity achromatic objectives. Eyepiece tubes rotate 360°. The user can adjust the eye relief on the eyepiece to fit their height. The digital camera is mounted instead of an eyepiece in the eyepiece tube with a diopter adjustment ring.

Revolving nosepiece

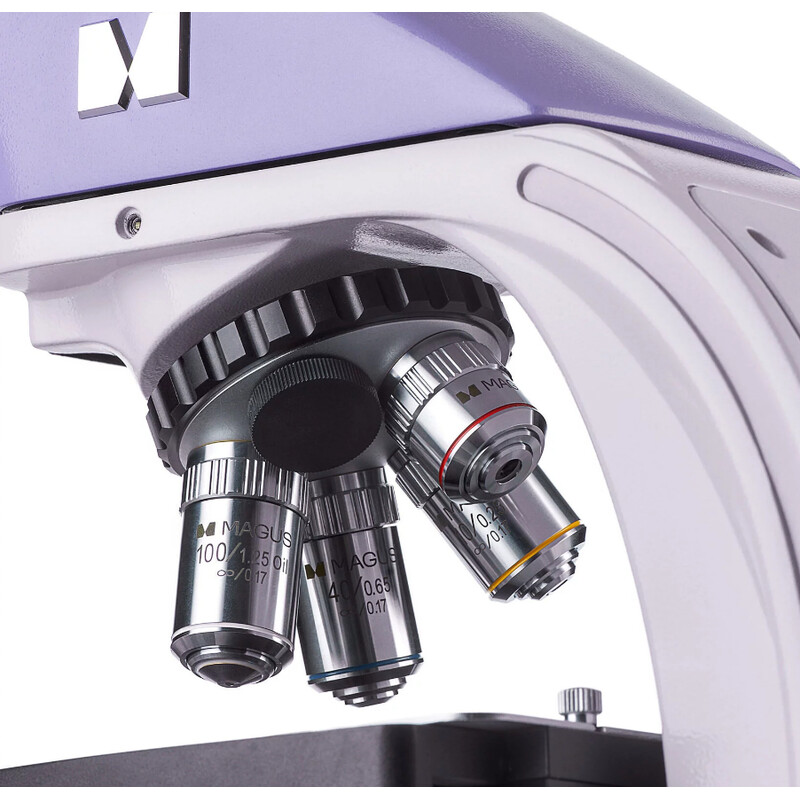

5 objectives. A slot for the installation of an additional lens that increases the range of magnification. The revolving nosepiece with objectives is oriented toward the interior – the user can see the objective inserted into the optical path, and the space above the stage is free.

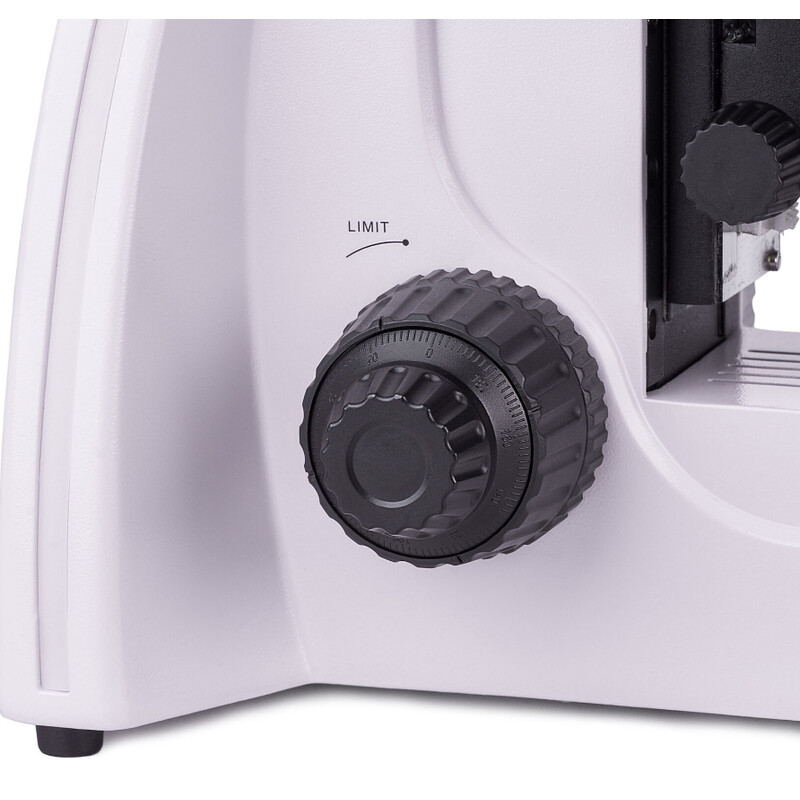

Focusing mechanism

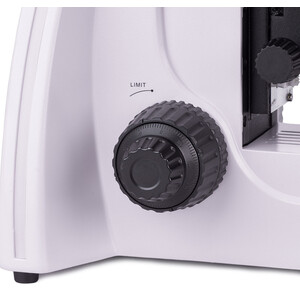

Coaxial coarse and fine focusing knobs are located at the base of the microscope on both sides. The user can put their hands on the table and take a relaxed pose while observing. The focus adjustment is smooth and easy.

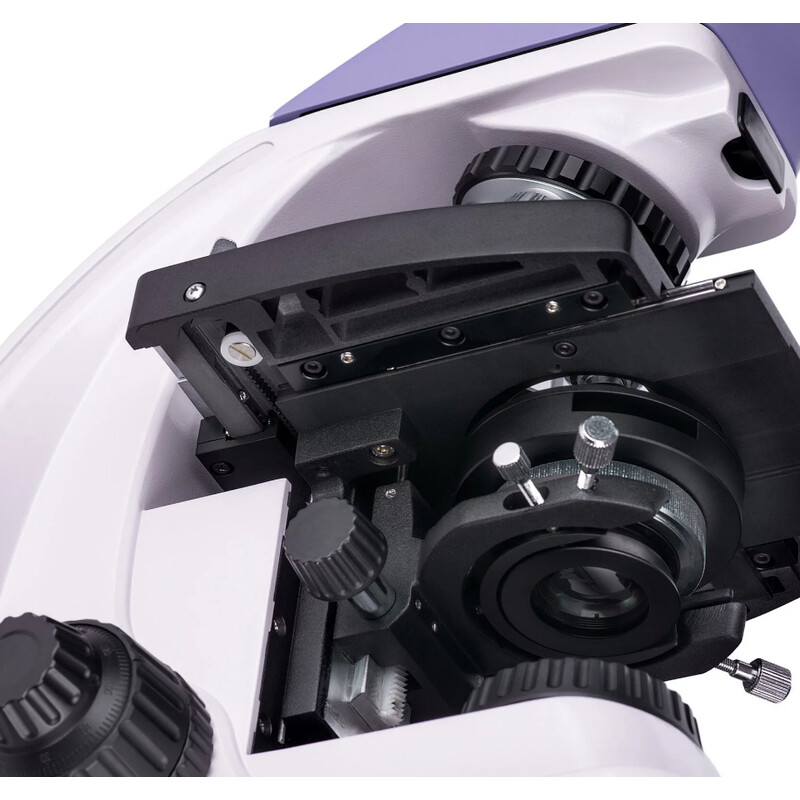

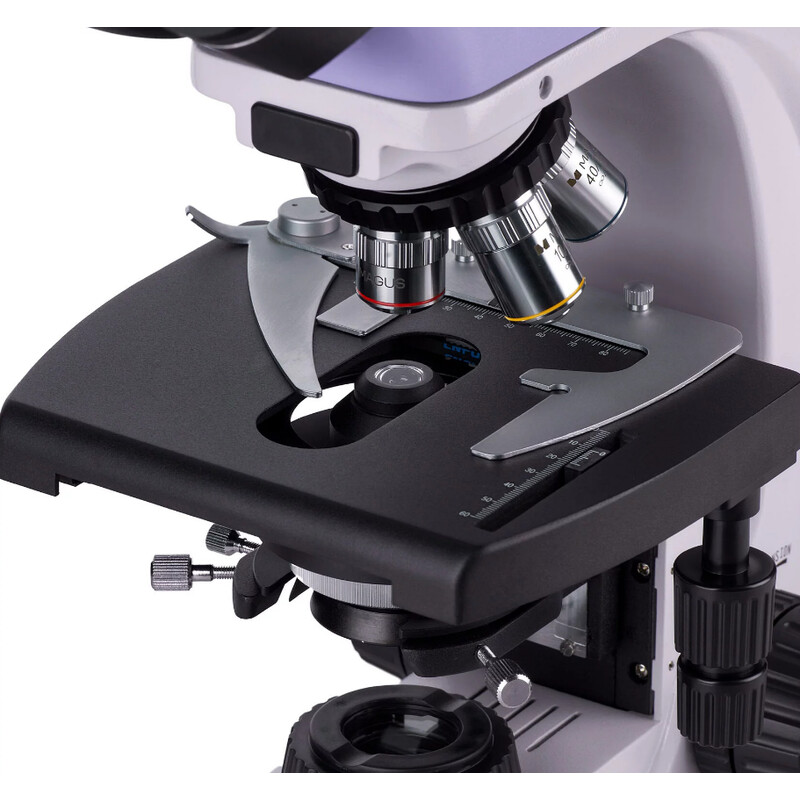

Stage

To ensure ergonomic operation of the stage, it does not have an X-axis positioning rack. The mechanism that has been mounted into the stage moves the object smoothly. The slide holder is attached by way of two screws and can be removed for easy operation.

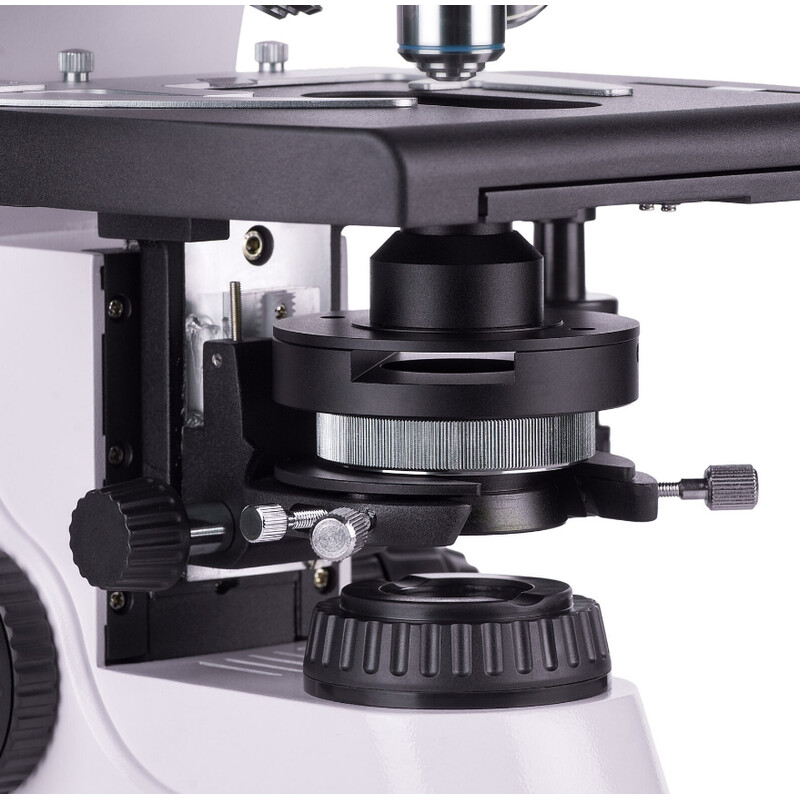

Abbe condenser

The condenser has a slot for a darkfield slider or a phase contrast slider. The installation of a slider saves time when changing the observation method.

Illumination

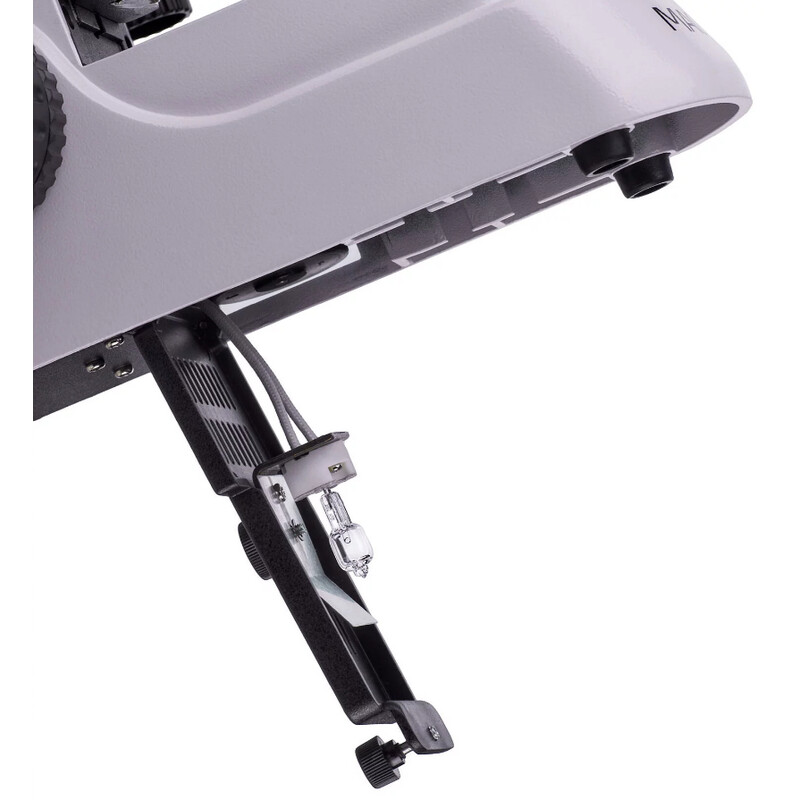

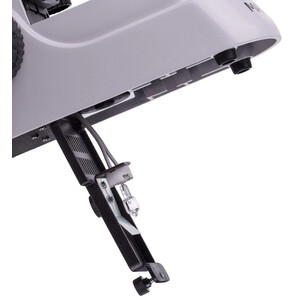

A halogen bulb emits warm colors that the eyes are used to. The bulb replacement requires minimal effort. The 30-watt bulb is bright enough for brightfield, darkfield, and phase-contrast methods.

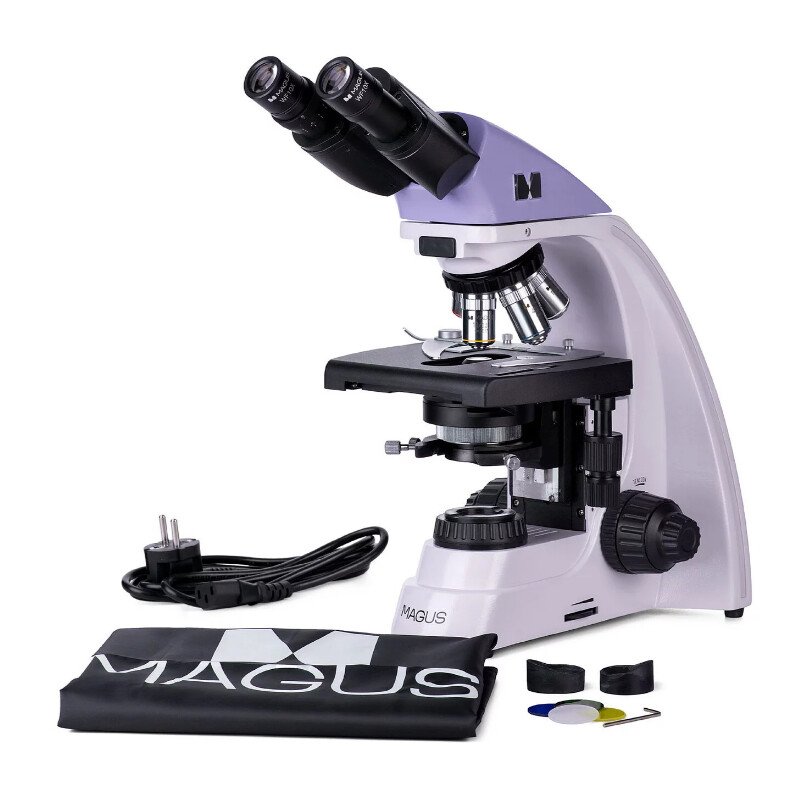

Accessories

There is a line of accessories designed for the microscope: eyepieces, objectives, darkfield, phase-contrast and polarization devices, digital cameras, and calibration slides.

Spécifications

Optique


Nombre de objectives
4
Éclairage
Lumière transmise
Courbure de champ
Plan
Correction des couleurs
achromatique
Condenseur
Abbe
Type de lampe
Halogène
Objectif 1
4x/0,1
Objectif 2
10x/0,25
Objetif 3
40x/0,65
Objectif 4
100x/1,25
Type de l´objective
Achromatique
Oculaire
10
Alimentation électrique
Alimentation électrique
Grossissement
40-1000
Système optique
infini

Système mécanique


Type de construction
Binoculaire
Posture d'observation (°)
30
Mise au point
Mouvement rapide / fin
Platine porte-objet
Platine à chariot croisé
Diamètre tube oculaire (mm)
23,2
Distance interpupillaire (mm)
48-75
Revolver
5

Particularités


Sac de protection contre la poussière
oui

Données générales


Série
BIO

Domaine d'expertise


Hobby
oui

Domaine d´emploi


Naturaliste
oui
Analyse des parasites
oui
