Mehr über die Serie RedLine100...
Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.
The RED-100 Series
The RED-100 Series represents the ideal microscope line for primary, secondary and high school students, it is ideal to explore the world of microscopy. The sample is easily placed by using the “one-touch” sample clips. The gliding stage allows the students to gradually move the specimen in different directions.

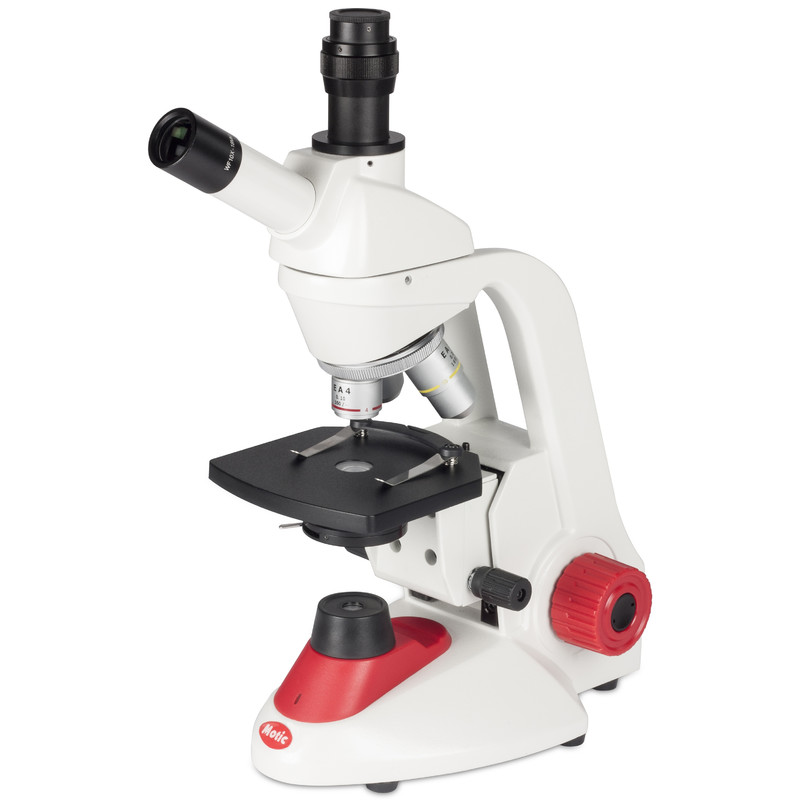

The RED 101
- Finite optical system, 160mm
- Dual view monocular head
- 45° inclined and vertical, 360º rotating
- WF10X/18mm with pointer, lockable Reversed triple revolving nosepiece with click stops
- EA Achromatic, DIN
- 4X/0.10, 10X/0.25, 40X/0.65/S
- W 4/5" x 1/36" (RMS standard)
- Gliding stage with “one-touch” sample clips
- Stage size: 110mm x 110mm
- Upper limit stop preset and adjustable
- Built-in 0.65 N.A. condenser with iris diaphragm
- Fine focus precision 2µm minimum increment
- Z-axis movement 13mm
- Filter: Built-in frosted glass
- LED 20mA, 3.5V, 70mW with intensity control
- Transformer external
- Power supply. Charger 100-240V or rechargeable batteries
- Accessories included: Dust cover, charger and batteries
- Length X Width X Height 234 x 152 x 360mm
- Weight 4,7Kg
